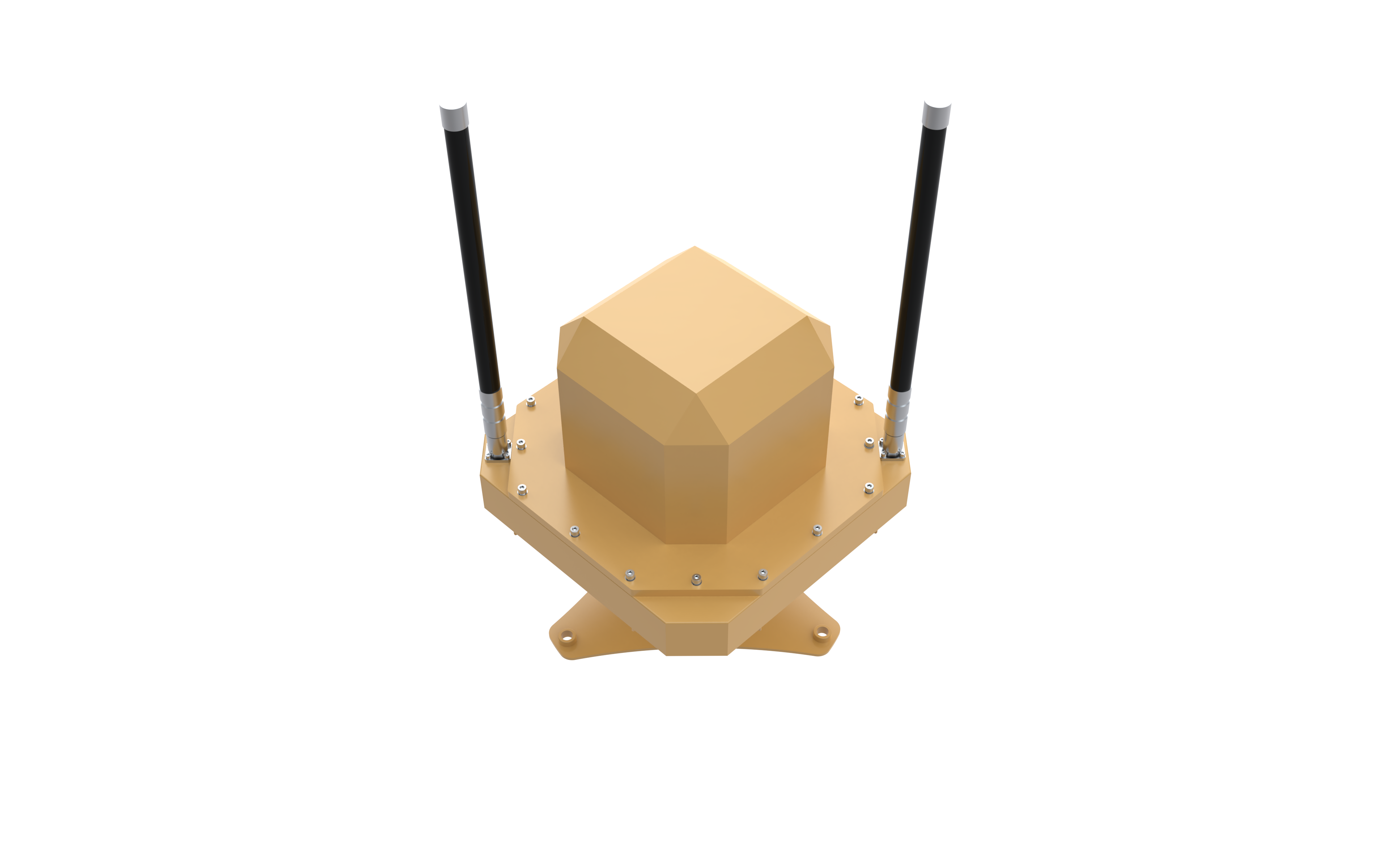

D200S Standard Drone Detection Equipment

D200S

For most frequency bands

Standard Drone Detection Equipment

The D200S is an intelligent low-altitude security equipment that performs key-band detection, identification and location of drone radio signals. The equipment adopts multiple technologies including a key-band omnidirectional antenna array, AI spectrum identification and protocol analysis.

Inquire Back to Products
D200S
SPECIFICATIONS

Specifications

Detection-Finding Frequency Band 845MHz, 915MHz, 1.2GHz, 1.4GHz, 2.4GHz, 3.3GHz, 5.2GHz, 5.8GHz (supports expansion from 300 MHz to 6 GHz)
Detection Range ≥2km
Direction Response Time 2s
Detection Coverage 360°
Simultaneous Detection Capacity ≥10 sets
Power Consumption ≤ 40W
Operating Temperature -30°C~ +55°C
Dimensions 325mm*325mm*280mm
Weight ≤ 5kg
Protection Ingress IP65

An intelligent low-altitude security device designed for key-band detection, identification, and localization of drone radio signals. It integrates technologies such as a key-band omnidirectional antenna array, AI spectrum recognition, and protocol analysis.

Feature

    1. Unmanned operation
    2. Autonomous GPS positioning
    3. Key-band detection
    4. Supports allowlist/blocklist management with one-click allowlist addition
    5. Protocol analysis to locate drones and operators
    6. Customizable signature database
